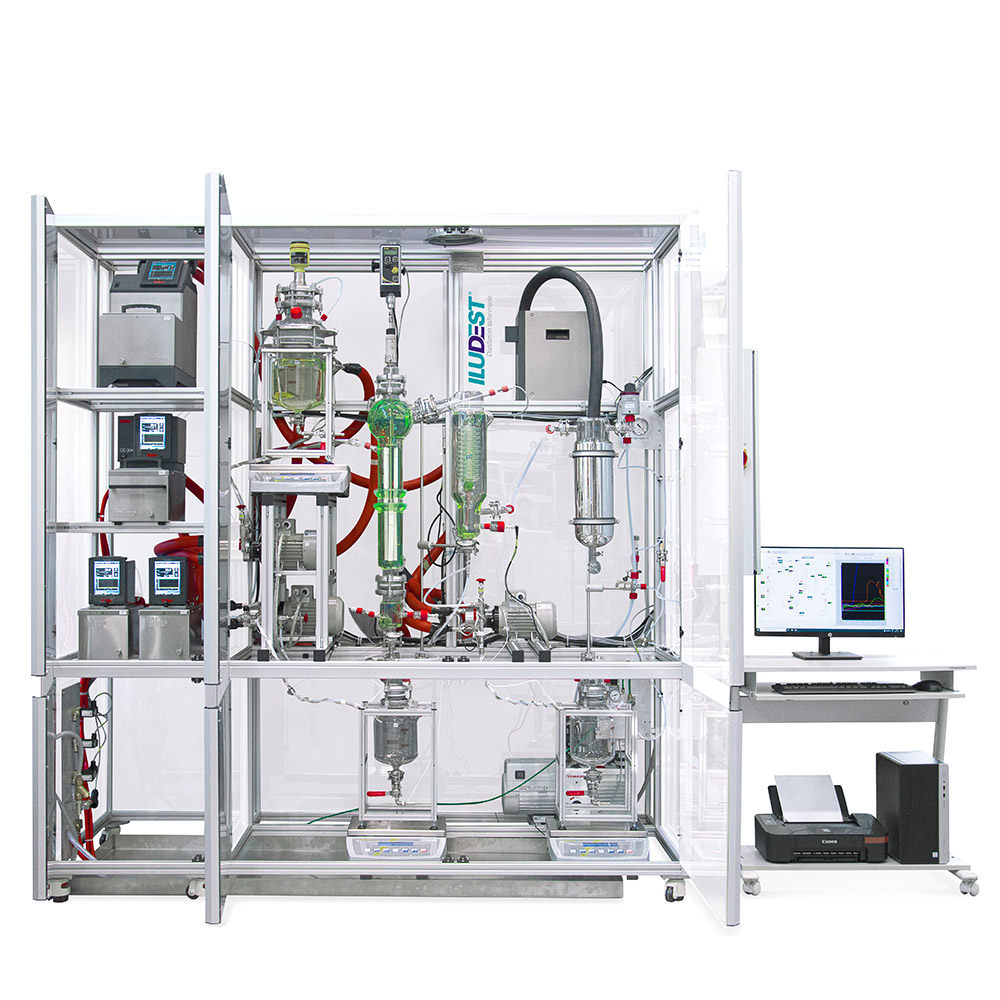

ILUDEST® Thin Film Evaporator DS 50



Thin Film Evaporators are used in chemical industry for the production and processing of low-molecular as well as macro-molecular substances. Because of the thermal sensitiveness of products, this separation method is applicable. The medium which is to be distilled is exposed only for a very short time to the heating substances because the film, which is created by the wiper, can evaporate very quickly. The residence time of medium on the heating surface is a matter of seconds, thus essentially less than in a reboiler flask, circulating evaporator etc.

Evaporators in borosilicate glass 3.3 are available with heat exchange areas 0.02…0.8 m².

Alternative design versions in in stainless steel for higher throughputs are available upon request. This email address is being protected from spambots. You need JavaScript enabled to view it.

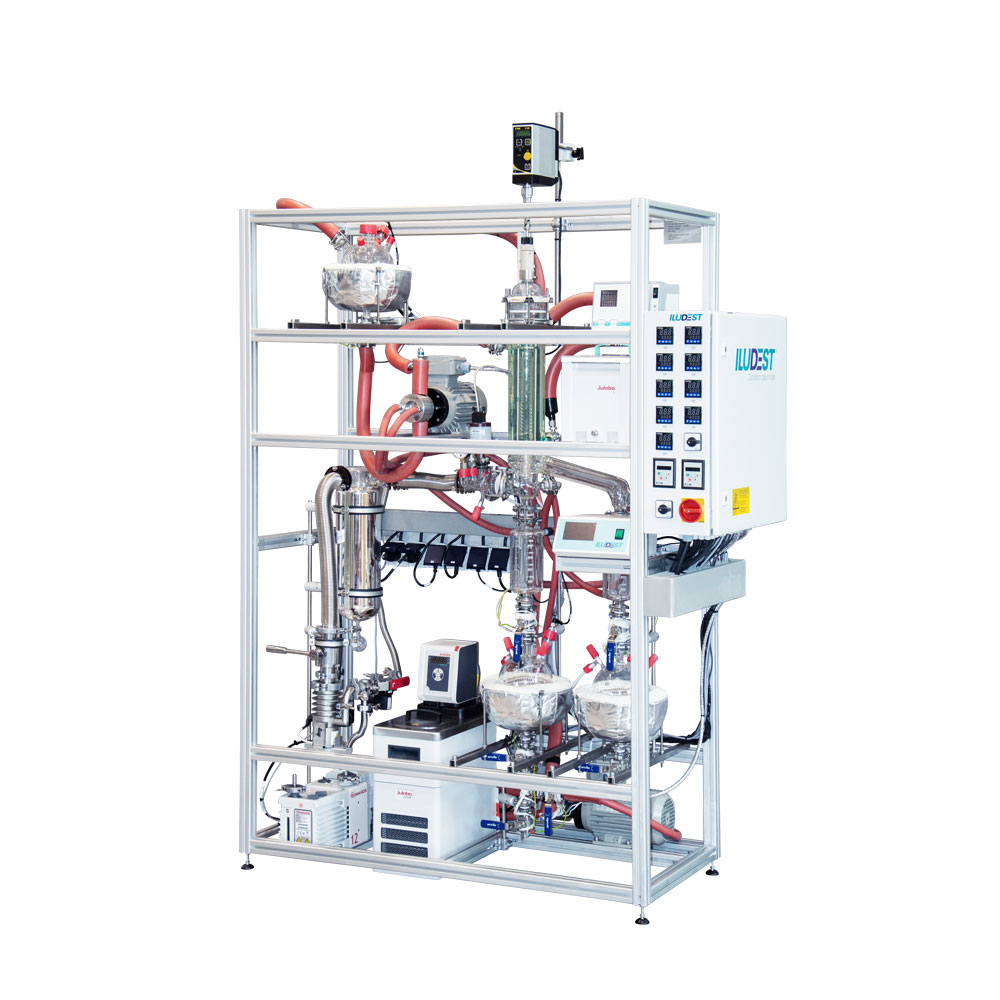

ILUDEST® Short Path Evaporator KV 80



Short Path Evaporators are used in chemical industry for the production and processing of macro-molecular substances. Because of the thermal sensitiveness of products, this separation method is applicable. The sample to be distilled is exposed only for a very short time to the heating substances because the film, created by the wiper, can evaporate very quickly. The residence time of medium on the heating surface is a matter of seconds, thus essentially less than in a reboiler flask, circulating evaporator etc. The evaporated product (operation pressures down to 10-3 mbar and temperatures up to about 300°C) has to pass a “short path” to the condenser only, which is located in the middle of the evaporator.

Evaporators in borosilicate glass 3.3 are available with heat exchange areas 0.02…0.8 m².

Evaporators in stainless steel can be heated by a heating jacket to higher temperatures with more heat transfer area for higher throughputs. This email address is being protected from spambots. You need JavaScript enabled to view it.
