Distillation Control Unit ILUDEST® [DC / MIC]³

ILUDEST®‘s answer to medium level requirements on automated distillation controls ...

Unit with colour graphical 15”-Touch-Panel (capacitive) providing the functions as below:

  • Heating control either through constant power or constant temperature
  • Reflux ratio range (0) 1...500 s / (0) 1...500 s
  • Temperature- or time-controlled distribution of fractions by optional fraction valve
  • Vacuum control
  • Control of mantle heater

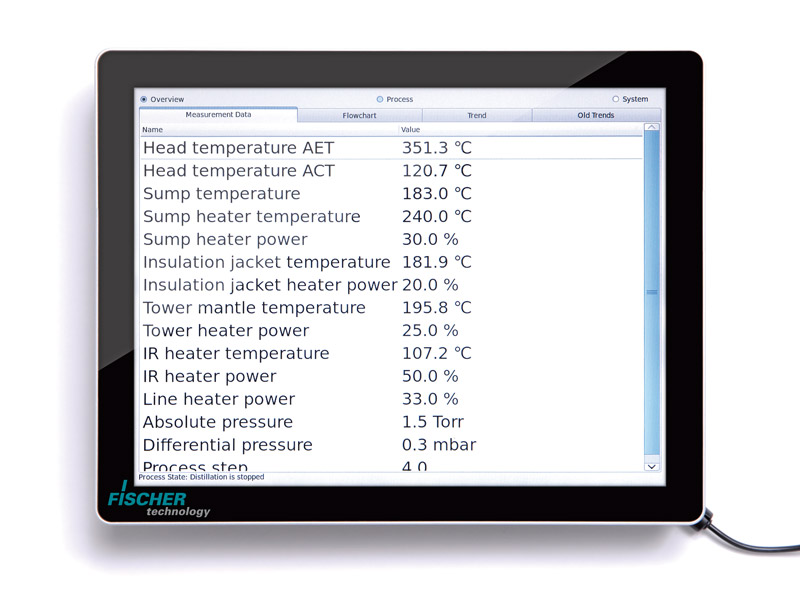

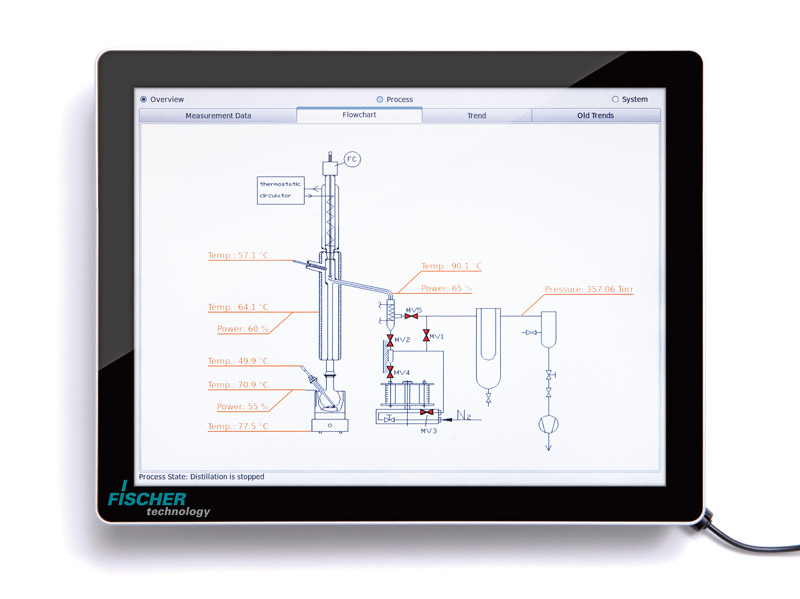

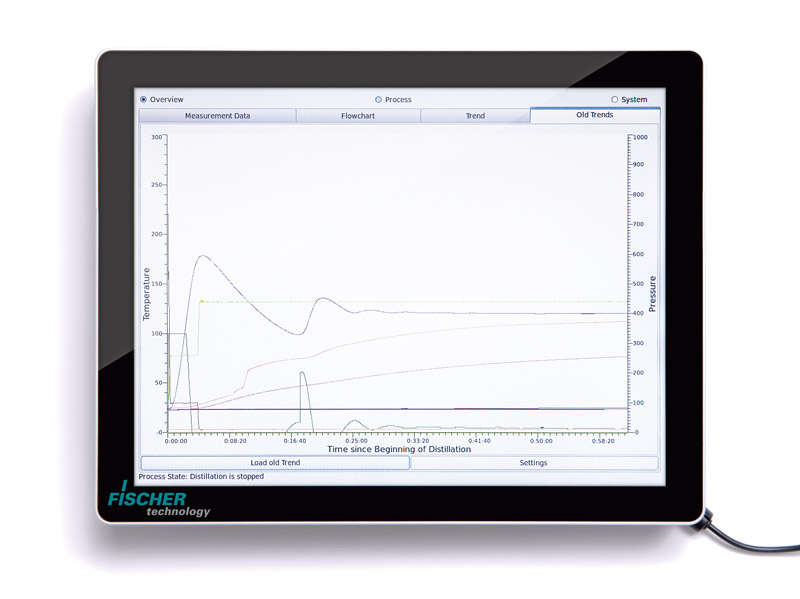

  • Numerical and graphical display of all measurement data
  • Control of safety limits (temperature and differential pressure)
  • Coolant flow control

Automatic Process

  • Start-up process at increased heating power
  • Equilibrium-time under total reflux
  • Fractionation at individual reflux ratio
  • Termination of distillation process through maximum temperature
  • Minimum level in the evaporator or time-controlled

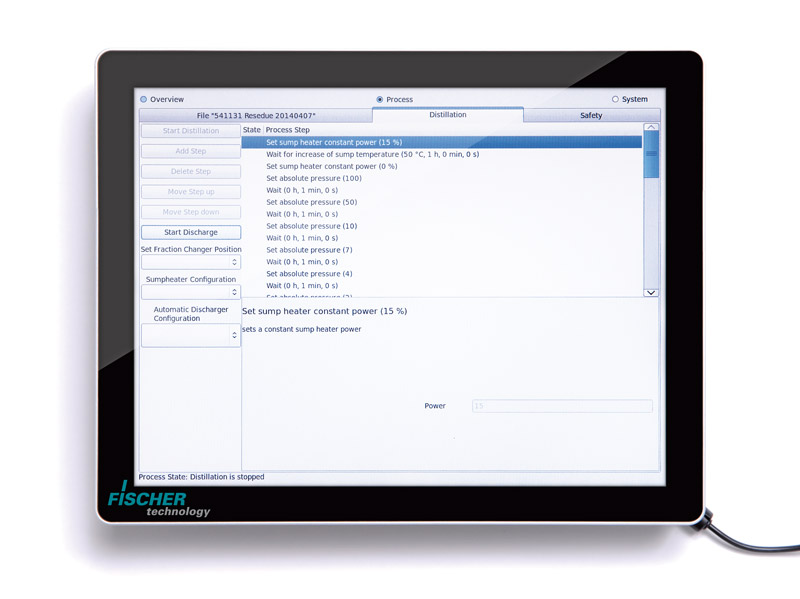

The controller includes a recipe management
An optional software allows to control the system by a remote PC via Ethernet

In- and outputs for the sensors / actuators (basic design):

  • 1x Head solenoid 24VDC max. 1A
  • 1x Fraction valve 24VDC max. 1A
  • 1x Vacuum valve 24VDC max. 1A
  • 1x Cooling water valve bistable
  • 1x Alarm output (isolated)
  • 2x Heating output each max. 230 V 15A (please note: total current consumption max. 15A!)
  • 1x Output for vacuum pump 230 V max. 4A
  • 1x Minimum level sensor input
  • 1x Cooling water sensor input
  • 1x Optional input
  • 1x Head temperature sensor Pt-100
  • 1x Flask temperature sensor Pt-100
  • 1x Heater temperature sensor Pt-100
  • 1x Toption1 Pt-100
  • 1x Toption2 Pt-100
  • 1x pabs (0...10V)
